Clock control register.

#include <rcc.hpp>

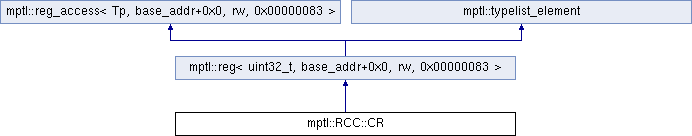

Inheritance diagram for mptl::RCC::CR:

Public Types
using	HSION = regbits< type, 0, 1 >
	Internal High Speed clock enable. More...

using	HSIRDY = regbits< type, 1, 1 >
	Internal High Speed clock ready flag. More...

using	HSITRIM = regbits< type, 3, 5 >
	Internal High Speed clock trimming. More...

using	HSICAL = regbits< type, 8, 8 >
	Internal High Speed clock Calibration. More...

using	HSEON = regbits< type, 16, 1 >
	External High Speed clock enable. More...

using	HSERDY = regbits< type, 17, 1 >
	External High Speed clock ready flag. More...

using	HSEBYP = regbits< type, 18, 1 >
	External High Speed clock Bypass. More...

using	CSSON = regbits< type, 19, 1 >
	Clock Security System enable. More...

using	PLLON = regbits< type, 24, 1 >
	PLL enable. More...

using	PLLRDY = regbits< type, 25, 1 >
	PLL clock ready flag. More...

using	PLL2ON = regbits< type, 26, 1 >
	PLL2 enable (only available on connectivity line devices!) More...

using	PLL2RDY = regbits< type, 27, 1 >
	PLL2 clock ready flag (only available on connectivity line devices!) More...

using	PLL3ON = regbits< type, 28, 1 >
	PLL3 enable (only available on connectivity line devices!) More...

using	PLL3RDY = regbits< type, 29, 1 >
	PLL3 clock ready flag (only available on connectivity line devices!) More...

Public Types inherited from mptl::reg< uint32_t, base_addr+0x0, rw, 0x00000083 >
typedef reg< Tp, base_addr+0x0, rw, 0x00000083 >	type

typedef type	reg_type

typedef regbits< type, 0, sizeof(Tp) *8 >	regbits_type

typedef Tp	value_type

typedef regmask< reg_type, 0, 0 >	neutral_regmask

Public Types inherited from mptl::reg_access< Tp, base_addr+0x0, rw, 0x00000083 >
typedef Tp	value_type

Additional Inherited Members
Static Public Member Functions inherited from mptl::reg< uint32_t, base_addr+0x0, rw, 0x00000083 >
static __always_inline value_type	test (value_type const value)

static __always_inline void	set (value_type const value)

static __always_inline void	set (value_type const set_mask, value_type const clear_mask)

static __always_inline void	set (void)

static __always_inline void	set (value_type const value)

static __always_inline void	clear (value_type const value)

static __always_inline void	clear (void)

static __always_inline void	mask (value_type const value)

static __always_inline void	reset ()

static __always_inline void	reset_to (void)

Static Public Member Functions inherited from mptl::reg_access< Tp, base_addr+0x0, rw, 0x00000083 >
static __always_inline Tp	load (void)

static __always_inline void	store (Tp const value)

static __always_inline void	bitset ()

static __always_inline void	bitclear ()

static __always_inline bool	bittest ()

Static Public Attributes inherited from mptl::reg< uint32_t, base_addr+0x0, rw, 0x00000083 >
static constexpr value_type	reset_value

Static Public Attributes inherited from mptl::reg_access< Tp, base_addr+0x0, rw, 0x00000083 >
static constexpr reg_addr_t	addr

static constexpr reg_perm	permission

static constexpr bool	bitop_enabled
