PLL Multiplication Factor.

#include <rcc.hpp>

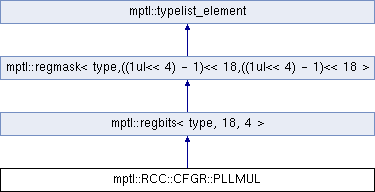

Inheritance diagram for mptl::RCC::CFGR::PLLMUL:

Public Types
using	MUL2 = regval< regbits_type, 0x0 >
	0000: PLL input clock * 2 (not available on connectivity line devices!) More...

using	MUL3 = regval< regbits_type, 0x1 >
	0001: PLL input clock * 3 (not available on connectivity line devices!) More...

using	MUL4 = regval< regbits_type, 0x2 >
	0010: PLL input clock * 4 More...

using	MUL5 = regval< regbits_type, 0x3 >
	0011: PLL input clock * 5 More...

using	MUL6 = regval< regbits_type, 0x4 >
	0100: PLL input clock * 6 More...

using	MUL7 = regval< regbits_type, 0x5 >
	0101: PLL input clock * 7 More...

using	MUL8 = regval< regbits_type, 0x6 >
	0110: PLL input clock * 8 More...

using	MUL9 = regval< regbits_type, 0x7 >
	0111: PLL input clock * 9 More...

using	MUL10 = regval< regbits_type, 0x8 >
	1000: PLL input clock * 10 (not available on connectivity line devices!) More...

using	MUL11 = regval< regbits_type, 0x9 >
	1001: PLL input clock * 11 (not available on connectivity line devices!) More...

using	MUL12 = regval< regbits_type, 0xa >
	1010: PLL input clock * 12 (not available on connectivity line devices!) More...

using	MUL13 = regval< regbits_type, 0xb >
	1011: PLL input clock * 13 (not available on connectivity line devices!) More...

using	MUL14 = regval< regbits_type, 0xc >
	1100: PLL input clock * 14 (not available on connectivity line devices!) More...

using	MUL15 = regval< regbits_type, 0xd >
	1101: PLL input clock * 15 (not available on connectivity line devices!) More...

using	MUL16 = regval< regbits_type, 0xe >
	1110: PLL input clock * 16 (not available on connectivity line devices!) More...

using	MUL6_5 = regval< regbits_type, 0xd >
	1101: PLL input clock * 6.5 (only available on connectivity line devices!) More...

Public Types inherited from mptl::regbits< type, 18, 4 >
typedef regbits< typename type ::reg_type, 18, 4 >	type

typedef typename type ::reg_type	reg_type

typedef regmask< type,((1ul<< 4) - 1)<< 18,((1ul<< 4) - 1)<< 18 >	regmask_type

typedef type	regbits_type

typedef typename type ::value_type	value_type

Public Types inherited from mptl::regmask< type,((1ul<< 4) - 1)<< 18,((1ul<< 4) - 1)<< 18 >
typedef regmask< typename type ::reg_type,((1ul<< 4) - 1)<< 18,((1ul<< 4) - 1)<< 18 >	type

typedef typename type ::reg_type	reg_type

typedef type	regmask_type

typedef typename type ::value_type	value_type

typedef mpl::bitcount< clear_mask >	bitcount

Additional Inherited Members
Static Public Member Functions inherited from mptl::regbits< type, 18, 4 >
static __always_inline constexpr value_type	value_from (value_type const val)

static __always_inline void	set_from (value_type const val)

static __always_inline bool	test_from (value_type const val)

static __always_inline value_type	load_and_shift ()

Static Public Member Functions inherited from mptl::regmask< type,((1ul<< 4) - 1)<< 18,((1ul<< 4) - 1)<< 18 >
static __always_inline void	set (void)

static __always_inline void	clear (void)

static __always_inline bool	test (void)

static __always_inline void	reset_to (void)

Static Public Attributes inherited from mptl::regbits< type, 18, 4 >
static constexpr value_type	value

Static Public Attributes inherited from mptl::regmask< type,((1ul<< 4) - 1)<< 18,((1ul<< 4) - 1)<< 18 >
static constexpr value_type	set_mask

static constexpr value_type	clear_mask

static constexpr value_type	cropped_clear_mask

static constexpr bool	bitop_enabled
