APB2 peripheral clock enable register (RCC_APB2ENR)

#include <rcc.hpp>

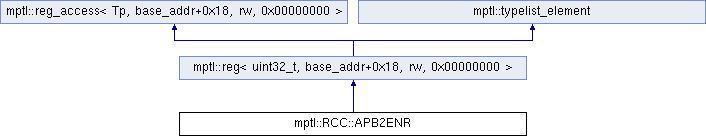

Inheritance diagram for mptl::RCC::APB2ENR:

Public Types
using	AFIOEN = regbits< type, 0, 1 >
	Alternate function I/O clock enable. More...

using	IOPAEN = regbits< type, 2, 1 >
	I/O port A clock enable. More...

using	IOPBEN = regbits< type, 3, 1 >
	I/O port B clock enable. More...

using	IOPCEN = regbits< type, 4, 1 >
	I/O port C clock enable. More...

using	IOPDEN = regbits< type, 5, 1 >
	I/O port D clock enable. More...

using	IOPEEN = regbits< type, 6, 1 >
	I/O port E clock enable (not available on low-density devices!) More...

using	IOPFEN = regbits< type, 7, 1 >
	I/O port F clock enable (only available on high- and XL-density devices!) More...

using	IOPGEN = regbits< type, 8, 1 >
	I/O port G clock enable (only available on high- and XL-density devices!) More...

using	ADC1EN = regbits< type, 9, 1 >
	ADC 1 interface clock enable. More...

using	ADC2EN = regbits< type, 10, 1 >
	ADC 2 interface clock enable (not available on low- and medium-density devices!) More...

using	TIM1EN = regbits< type, 11, 1 >
	TIM1 Timer clock enable. More...

using	SPI1EN = regbits< type, 12, 1 >
	SPI 1 clock enable. More...

using	TIM8EN = regbits< type, 13, 1 >
	TIM8 Timer clock enable (only available on high- and XL-density devices!) More...

using	USART1EN = regbits< type, 14, 1 >
	USART1 clock enable. More...

using	ADC3EN = regbits< type, 15, 1 >
	ADC 3 interface clock enable (only available on high- and XL-density devices!) More...

using	TIM15EN = regbits< type, 16, 1 >
	TIM15 Timer clock enable (only available on low- and medium-density devices!) More...

using	TIM16EN = regbits< type, 17, 1 >
	TIM16 Timer clock enable (only available on low- and medium-density devices!) More...

using	TIM17EN = regbits< type, 18, 1 >
	TIM17 Timer clock enable (only available on low- and medium-density devices!) More...

using	TIM9EN = regbits< type, 19, 1 >
	TIM9 Timer clock enable (only available on XL-density devices!) More...

using	TIM10EN = regbits< type, 20, 1 >
	TIM10 Timer clock enable (only available on XL-density devices!) More...

using	TIM11EN = regbits< type, 21, 1 >
	TIM11 Timer clock enable (only available on XL-density devices!) More...

Public Types inherited from mptl::reg< uint32_t, base_addr+0x18, rw, 0x00000000 >
typedef reg< Tp, base_addr+0x18, rw, 0x00000000 >	type

typedef type	reg_type

typedef regbits< type, 0, sizeof(Tp) *8 >	regbits_type

typedef Tp	value_type

typedef regmask< reg_type, 0, 0 >	neutral_regmask

Public Types inherited from mptl::reg_access< Tp, base_addr+0x18, rw, 0x00000000 >
typedef Tp	value_type

Additional Inherited Members
Static Public Member Functions inherited from mptl::reg< uint32_t, base_addr+0x18, rw, 0x00000000 >
static __always_inline value_type	test (value_type const value)

static __always_inline void	set (value_type const value)

static __always_inline void	set (value_type const set_mask, value_type const clear_mask)

static __always_inline void	set (void)

static __always_inline void	set (value_type const value)

static __always_inline void	clear (value_type const value)

static __always_inline void	clear (void)

static __always_inline void	mask (value_type const value)

static __always_inline void	reset ()

static __always_inline void	reset_to (void)

Static Public Member Functions inherited from mptl::reg_access< Tp, base_addr+0x18, rw, 0x00000000 >
static __always_inline Tp	load (void)

static __always_inline void	store (Tp const value)

static __always_inline void	bitset ()

static __always_inline void	bitclear ()

static __always_inline bool	bittest ()

Static Public Attributes inherited from mptl::reg< uint32_t, base_addr+0x18, rw, 0x00000000 >
static constexpr value_type	reset_value

Static Public Attributes inherited from mptl::reg_access< Tp, base_addr+0x18, rw, 0x00000000 >
static constexpr reg_addr_t	addr

static constexpr reg_perm	permission

static constexpr bool	bitop_enabled
