APB1 peripheral clock enable register (RCC_APB1ENR)

#include <rcc.hpp>

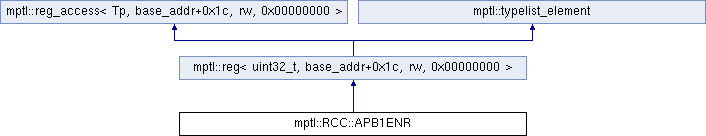

Inheritance diagram for mptl::RCC::APB1ENR:

Public Types
using	TIM2EN = regbits< type, 0, 1 >
	Timer 2 clock enable. More...

using	TIM3EN = regbits< type, 1, 1 >
	Timer 3 clock enable. More...

using	TIM4EN = regbits< type, 2, 1 >
	Timer 4 clock enable (not available on low-density devices!) More...

using	TIM5EN = regbits< type, 3, 1 >
	Timer 5 clock enable. More...

using	TIM6EN = regbits< type, 4, 1 >
	Timer 6 clock enable. More...

using	TIM7EN = regbits< type, 5, 1 >
	Timer 7 clock enable. More...

using	TIM12EN = regbits< type, 6, 1 >
	Timer 12 clock enable (only available on XL-density devices!) More...

using	TIM13EN = regbits< type, 7, 1 >
	Timer 13 clock enable (only available on XL-density devices!) More...

using	TIM14EN = regbits< type, 8, 1 >
	Timer 14 clock enable (only available on XL-density devices!) More...

using	WWDGEN = regbits< type, 11, 1 >
	Window watchdog clock enable. More...

using	SPI2EN = regbits< type, 14, 1 >
	SPI 2 clock enable (not available on low-density devices!) More...

using	SPI3EN = regbits< type, 15, 1 >
	SPI 3 clock enable. More...

using	USART2EN = regbits< type, 17, 1 >
	USART 2 clock enable. More...

using	USART3EN = regbits< type, 18, 1 >
	USART 3 clock enable (not available on low-density devices!) More...

using	UART4EN = regbits< type, 19, 1 >
	UART 4 clock enable. More...

using	UART5EN = regbits< type, 20, 1 >
	UART 5 clock enable. More...

using	I2C1EN = regbits< type, 21, 1 >
	I2C 1 clock enable. More...

using	I2C2EN = regbits< type, 22, 1 >
	I2C 2 clock enable (not available on low-density devices!) More...

using	USBEN = regbits< type, 23, 1 >
	USB device clock enable (not available on connectivity line devices!) More...

using	CAN1EN = regbits< type, 25, 1 >
	CAN1 clock enable (not available on low- and medium-density devices!) More...

using	CAN2EN = regbits< type, 26, 1 >
	CAN2 clock enable (only available on connectivity line devices!) More...

using	BKPEN = regbits< type, 27, 1 >
	Backup interface clock enable. More...

using	PWREN = regbits< type, 28, 1 >
	Power interface clock enable. More...

using	DACEN = regbits< type, 29, 1 >
	DAC interface clock enable. More...

using	CECEN = regbits< type, 30, 1 >
	CEC interface clock enable. More...

Public Types inherited from mptl::reg< uint32_t, base_addr+0x1c, rw, 0x00000000 >
typedef reg< Tp, base_addr+0x1c, rw, 0x00000000 >	type

typedef type	reg_type

typedef regbits< type, 0, sizeof(Tp) *8 >	regbits_type

typedef Tp	value_type

typedef regmask< reg_type, 0, 0 >	neutral_regmask

Public Types inherited from mptl::reg_access< Tp, base_addr+0x1c, rw, 0x00000000 >
typedef Tp	value_type

Additional Inherited Members
Static Public Member Functions inherited from mptl::reg< uint32_t, base_addr+0x1c, rw, 0x00000000 >
static __always_inline value_type	test (value_type const value)

static __always_inline void	set (value_type const value)

static __always_inline void	set (value_type const set_mask, value_type const clear_mask)

static __always_inline void	set (void)

static __always_inline void	set (value_type const value)

static __always_inline void	clear (value_type const value)

static __always_inline void	clear (void)

static __always_inline void	mask (value_type const value)

static __always_inline void	reset ()

static __always_inline void	reset_to (void)

Static Public Member Functions inherited from mptl::reg_access< Tp, base_addr+0x1c, rw, 0x00000000 >
static __always_inline Tp	load (void)

static __always_inline void	store (Tp const value)

static __always_inline void	bitset ()

static __always_inline void	bitclear ()

static __always_inline bool	bittest ()

Static Public Attributes inherited from mptl::reg< uint32_t, base_addr+0x1c, rw, 0x00000000 >
static constexpr value_type	reset_value

Static Public Attributes inherited from mptl::reg_access< Tp, base_addr+0x1c, rw, 0x00000000 >
static constexpr reg_addr_t	addr

static constexpr reg_perm	permission

static constexpr bool	bitop_enabled
