Control register 2.

#include <tim.hpp>

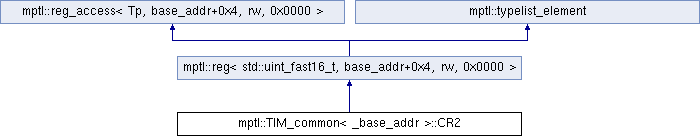

Inheritance diagram for mptl::TIM_common< _base_addr >::CR2:

Public Types
using	type = reg< std::uint_fast16_t, base_addr+0x4, rw, 0x0000 >

using	OIS4 = regbits< type, 14, 1 >
	Output Idle state 4. More...

using	OIS3N = regbits< type, 13, 1 >
	Output Idle state 3. More...

using	OIS3 = regbits< type, 12, 1 >
	Output Idle state 3. More...

using	OIS2N = regbits< type, 11, 1 >
	Output Idle state 2. More...

using	OIS2 = regbits< type, 10, 1 >
	Output Idle state 2. More...

using	OIS1N = regbits< type, 9, 1 >
	Output Idle state 1. More...

using	OIS1 = regbits< type, 8, 1 >
	Output Idle state 1. More...

using	TI1S = regbits< type, 7, 1 >
	TI1 selection. More...

using	MMS = regbits< type, 4, 3 >
	Master mode selection. More...

using	CCDS = regbits< type, 3, 1 >
	Capture/compare DMA selection. More...

using	CCUS = regbits< type, 2, 1 >
	Capture/compare control update selection. More...

using	CCPC = regbits< type, 0, 1 >
	Capture/compare preloaded control. More...

Public Types inherited from mptl::reg< std::uint_fast16_t, base_addr+0x4, rw, 0x0000 >
typedef reg< Tp, base_addr+0x4, rw, 0x0000 >	type

typedef type	reg_type

typedef regbits< type, 0, sizeof(Tp) *8 >	regbits_type

typedef Tp	value_type

typedef regmask< reg_type, 0, 0 >	neutral_regmask

Public Types inherited from mptl::reg_access< Tp, base_addr+0x4, rw, 0x0000 >
typedef Tp	value_type

Additional Inherited Members
Static Public Member Functions inherited from mptl::reg< std::uint_fast16_t, base_addr+0x4, rw, 0x0000 >
static __always_inline value_type	test (value_type const value)

static __always_inline void	set (value_type const value)

static __always_inline void	set (value_type const set_mask, value_type const clear_mask)

static __always_inline void	set (void)

static __always_inline void	set (value_type const value)

static __always_inline void	clear (value_type const value)

static __always_inline void	clear (void)

static __always_inline void	mask (value_type const value)

static __always_inline void	reset ()

static __always_inline void	reset_to (void)

Static Public Member Functions inherited from mptl::reg_access< Tp, base_addr+0x4, rw, 0x0000 >
static __always_inline Tp	load (void)

static __always_inline void	store (Tp const value)

static __always_inline void	bitset ()

static __always_inline void	bitclear ()

static __always_inline bool	bittest ()

Static Public Attributes inherited from mptl::reg< std::uint_fast16_t, base_addr+0x4, rw, 0x0000 >
static constexpr value_type	reset_value

Static Public Attributes inherited from mptl::reg_access< Tp, base_addr+0x4, rw, 0x0000 >
static constexpr reg_addr_t	addr

static constexpr reg_perm	permission

static constexpr bool	bitop_enabled
