Power control register.

#include <pwr.hpp>

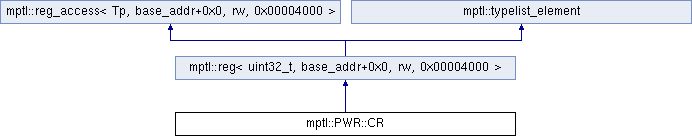

Inheritance diagram for mptl::PWR::CR:

Public Types
using	VOS = regbits< type, 14, 1 >
	Regulator voltage scaling output selection. More...

using	FPDS = regbits< type, 9, 1 >
	Flash power down in Stop mode. More...

using	DBP = regbits< type, 8, 1 >
	Disable backup domain write protection. More...

using	PLS = regbits< type, 5, 3 >
	PVD level selection. More...

using	PVDE = regbits< type, 4, 1 >
	Power voltage detector enable. More...

using	CSBF = regbits< type, 3, 1 >
	Clear standby flag. More...

using	CWUF = regbits< type, 2, 1 >
	Clear wakeup flag. More...

using	PDDS = regbits< type, 1, 1 >
	Power down deepsleep. More...

using	LPDS = regbits< type, 0, 1 >
	Low-power deep sleep. More...

Public Types inherited from mptl::reg< uint32_t, base_addr+0x0, rw, 0x00004000 >
typedef reg< Tp, base_addr+0x0, rw, 0x00004000 >	type

typedef type	reg_type

typedef regbits< type, 0, sizeof(Tp) *8 >	regbits_type

typedef Tp	value_type

typedef regmask< reg_type, 0, 0 >	neutral_regmask

Public Types inherited from mptl::reg_access< Tp, base_addr+0x0, rw, 0x00004000 >
typedef Tp	value_type

Additional Inherited Members
Static Public Member Functions inherited from mptl::reg< uint32_t, base_addr+0x0, rw, 0x00004000 >
static __always_inline value_type	test (value_type const value)

static __always_inline void	set (value_type const value)

static __always_inline void	set (value_type const set_mask, value_type const clear_mask)

static __always_inline void	set (void)

static __always_inline void	set (value_type const value)

static __always_inline void	clear (value_type const value)

static __always_inline void	clear (void)

static __always_inline void	mask (value_type const value)

static __always_inline void	reset ()

static __always_inline void	reset_to (void)

Static Public Member Functions inherited from mptl::reg_access< Tp, base_addr+0x0, rw, 0x00004000 >
static __always_inline Tp	load (void)

static __always_inline void	store (Tp const value)

static __always_inline void	bitset ()

static __always_inline void	bitclear ()

static __always_inline bool	bittest ()

Static Public Attributes inherited from mptl::reg< uint32_t, base_addr+0x0, rw, 0x00004000 >
static constexpr value_type	reset_value

Static Public Attributes inherited from mptl::reg_access< Tp, base_addr+0x0, rw, 0x00004000 >
static constexpr reg_addr_t	addr

static constexpr reg_perm	permission

static constexpr bool	bitop_enabled
